sc_shmem.h File Reference

#include <sc.h>

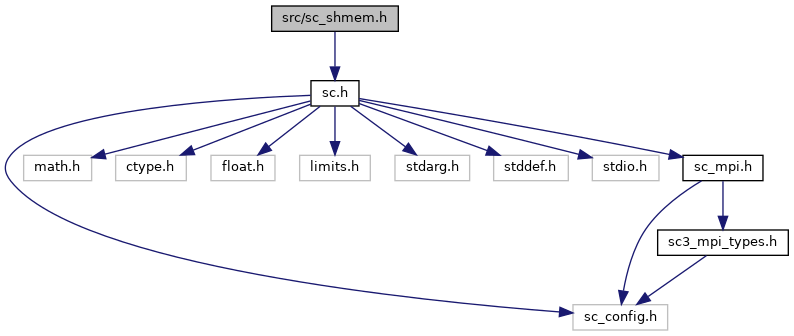

Include dependency graph for sc_shmem.h:

Go to the source code of this file.

Macros
#define	SC_SHMEM_ALLOC(t, e, c)   (t *) sc_shmem_malloc(sc_package_id,sizeof(t),e,c)
#define	SC_SHMEM_FREE(a, c)   sc_shmem_free (sc_package_id,a,c)

Enumerations
enum	sc_shmem_type_t {   SC_SHMEM_BASIC = 0 ,   SC_SHMEM_PRESCAN ,   SC_SHMEM_NUM_TYPES ,   SC_SHMEM_NOT_SET }

Functions
void	sc_shmem_set_type (sc_MPI_Comm comm, sc_shmem_type_t type)
	Set the type of shared memory arrays to use on this mpi communicator. More...
sc_shmem_type_t	sc_shmem_get_type (sc_MPI_Comm comm)
	Get the type of shared memory arrays to use on this mpi communicator. More...
void *	sc_shmem_malloc (int package, size_t elem_size, size_t elem_count, sc_MPI_Comm comm)
	Allocate a shmem array: an array that is redundant on every process. More...
void	sc_shmem_free (int package, void *array, sc_MPI_Comm comm)
	Destroy a shmem array created with sc_shmem_alloc() More...
int	sc_shmem_write_start (void *array, sc_MPI_Comm comm)
	Start a write window for a shared array. More...
void	sc_shmem_write_end (void *array, sc_MPI_Comm comm)
	End a write window for a shared array. More...
void	sc_shmem_memcpy (void *destarray, void *srcarray, size_t bytes, sc_MPI_Comm comm)
	Copy a shmem array. More...
void	sc_shmem_allgather (void *sendbuf, int sendcount, sc_MPI_Datatype sendtype, void *recvbuf, int recvcount, sc_MPI_Datatype recvtype, sc_MPI_Comm comm)
	Fill a shmem array with an allgather. More...
void	sc_shmem_prefix (void *sendbuf, void *recvbuf, int count, sc_MPI_Datatype type, sc_MPI_Op op, sc_MPI_Comm comm)
	Fill a shmem array with an allgather of the prefix op over all processes. More...

Variables
const char *	sc_shmem_type_to_string [SC_SHMEM_NUM_TYPES]
sc_shmem_type_t	sc_shmem_default_type

Enumeration Type Documentation

sc_shmem_type_t

enum sc_shmem_type_t

Enumerator
SC_SHMEM_BASIC	use allgathers, then sum to simulate scan
SC_SHMEM_PRESCAN	mpi_scan, then allgather

Function Documentation

sc_shmem_allgather()

void sc_shmem_allgather	(	void *	sendbuf,
		int	sendcount,
		sc_MPI_Datatype	sendtype,
		void *	recvbuf,
		int	recvcount,
		sc_MPI_Datatype	recvtype,
		sc_MPI_Comm	comm
	)

Fill a shmem array with an allgather.

Parameters

[in]	sendbuf	the source from this process
[in]	sendcount	the number of items to allgather
[in]	sendtype	the type of items to allgather
[in,out]	recvbuf	the destination shmem array
[in]	recvcount	the number of items to allgather
[in]	recvtype	the type of items to allgather
[in]	comm	the mpi communicator

sc_shmem_free()

void sc_shmem_free	(	int	package,
		void *	array,
		sc_MPI_Comm	comm
	)

Destroy a shmem array created with sc_shmem_alloc()

Parameters

[in]	package	package freeing memory
[in]	array	array to be freed
[in]	comm	the mpi communicator

sc_shmem_get_type()

sc_shmem_type_t sc_shmem_get_type

(

sc_MPI_Comm

comm

)

Get the type of shared memory arrays to use on this mpi communicator.

Parameters

[in]

comm

the mpi communicator

Returns

the type of shmem array used on this communicator.

sc_shmem_malloc()

void* sc_shmem_malloc	(	int	package,
		size_t	elem_size,
		size_t	elem_count,
		sc_MPI_Comm	comm
	)

Allocate a shmem array: an array that is redundant on every process.

Parameters

[in]	package	package requesting memory
[in]	elem_size	the size of each element in the array
[in]	elem_count	the number of elements in the array
[in]	comm	the mpi communicator

Returns

a shared memory array

sc_shmem_memcpy()

void sc_shmem_memcpy	(	void *	destarray,
		void *	srcarray,
		size_t	bytes,
		sc_MPI_Comm	comm
	)

Copy a shmem array.

Parameters

[out]	destarray	array to write to
[in]	srcarray	array to write from
[in]	bytes	number of bytes to write
[in]	comm	the mpi communicator

sc_shmem_prefix()

void sc_shmem_prefix	(	void *	sendbuf,
		void *	recvbuf,
		int	count,
		sc_MPI_Datatype	type,
		sc_MPI_Op	op,
		sc_MPI_Comm	comm
	)

Fill a shmem array with an allgather of the prefix op over all processes.

The return array will be (0, send0, send0 op send1, send0 op send1 op send2, ...)

Note that the first entry of recvbuf will be set to 0 using memset: if this is not the desired value for the first entry of the array, the user can change it after calling sc_shmem_prefix.

Parameters

[in]	sendbuf	the source from this process
[in,out]	recvbuf	the destination shmem array
[in]	count	the number of items to allgather
[in]	type	the type of items to allgather
[in]	op	the operation to prefix (e.g., sc_MPI_SUM)
[in]	comm	the mpi communicator

sc_shmem_set_type()

void sc_shmem_set_type	(	sc_MPI_Comm	comm,
		sc_shmem_type_t	type
	)

Set the type of shared memory arrays to use on this mpi communicator.

Parameters

[in,out]	comm	the mpi communicator
[in]	type	the type of shmem array behavior.

sc_shmem_write_end()

void sc_shmem_write_end	(	void *	array,
		sc_MPI_Comm	comm
	)

End a write window for a shared array.

Parameters

[in]	array	array that has changed
[in]	comm	the mpi communicator

sc_shmem_write_start()

int sc_shmem_write_start	(	void *	array,
		sc_MPI_Comm	comm
	)

Start a write window for a shared array.

Parameters

[in]	array	array that will be changed.
[in]	comm	the mpi communicator

Returns

1 if I have write access, 0 if my proc should not change the array.
