sc3_mpi_types.h File Reference

We provide MPI replacement data types for configuring without MPI. More...

#include <sc_config.h>

Include dependency graph for sc3_mpi_types.h:

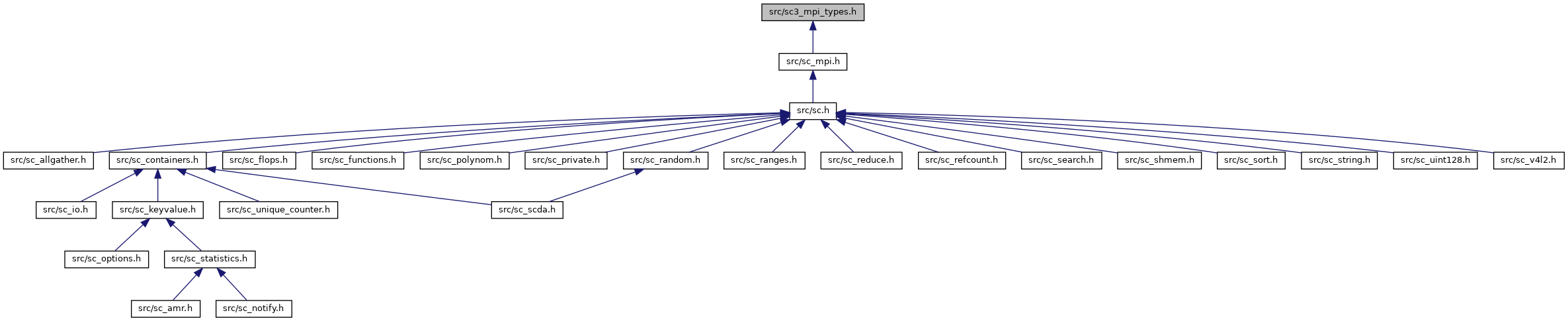

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SC3_MPI_ERRORS_RETURN   NULL
	Wrap the parameter to return on MPI errors.
#define	SC3_MPI_MAX_ERROR_STRING   BUFSIZ
	Create a wrapped version of the maximum error string length.
#define	SC3_MPI_COMM_NULL   ((sc3_MPI_Comm_t) NULL)
	Wrapped invalid MPI communicator.
#define	SC3_MPI_COMM_WORLD   ((sc3_MPI_Comm_t) 0x40)
	Without –enable-mpi, a communicator of size 1 and rank 0.
#define	SC3_MPI_COMM_SELF   ((sc3_MPI_Comm_t) 0x80)
	Without –enable-mpi, a communicator of size 1 and rank 0.
#define	SC3_MPI_INFO_NULL   ((sc3_MPI_Info_t) NULL)
	Wrapped invalid MPI info object.
#define	SC3_MPI_WIN_NULL   ((sc3_MPI_Win_t) NULL)
	Invalid MPI 3 window object.

Typedefs
typedef struct sc3_MPI_Errhandler *	sc3_MPI_Errhandler_t
	Wrapped MPI error handler object.
typedef struct sc3_MPI_Comm *	sc3_MPI_Comm_t
	Wrapped MPI communicator. More...
typedef struct sc3_MPI_Info *	sc3_MPI_Info_t
	Wrapped MPI info object. More...
typedef enum sc3_MPI_Datatype	sc3_MPI_Datatype_t
	We wrap the MPI datatypes we use.
typedef enum sc3_MPI_Op	sc3_MPI_Op_t
	We wrap the MPI operation types we use.
typedef enum sc3_MPI_Errorcode	sc3_MPI_Errorcode_t
	We wrap some MPI error codes and the I/O error classes.
typedef enum sc3_MPI_Enum	sc3_MPI_Enum_t
	We need several parameters to MPI functions.
typedef enum sc3_MPI_Comm_type	sc3_MPI_Comm_type_t
	We wrap MPI 3 shared memory communicators. More...
typedef struct sc3_MPI_Win *	sc3_MPI_Win_t
	We wrap the MPI 3 window object. More...
typedef long	sc3_MPI_Aint_t
	We wrap the MPI address integer type.
typedef enum sc3_MPI_Win_mode	sc3_MPI_Win_mode_t
	Wrap MPI 3 window lock modes.

Enumerations
enum	sc3_MPI_Datatype {   SC3_MPI_DATATYPE_NULL = 0 ,   SC3_MPI_BYTE ,   SC3_MPI_INT ,   SC3_MPI_2INT ,   SC3_MPI_UNSIGNED ,   SC3_MPI_LONG ,   SC3_MPI_LONG_LONG ,   SC3_MPI_FLOAT ,   SC3_MPI_DOUBLE ,   SC3_MPI_DOUBLE_INT }
	We wrap the MPI datatypes we use. More...
enum	sc3_MPI_Op {   SC3_MPI_OP_NULL = 0 ,   SC3_MPI_MIN ,   SC3_MPI_MAX ,   SC3_MPI_MINLOC ,   SC3_MPI_MAXLOC ,   SC3_MPI_LOR ,   SC3_MPI_LAND ,   SC3_MPI_LXOR ,   SC3_MPI_BOR ,   SC3_MPI_BAND ,   SC3_MPI_BXOR ,   SC3_MPI_REPLACE ,   SC3_MPI_SUM ,   SC3_MPI_PROD }
	We wrap the MPI operation types we use. More...
enum	sc3_MPI_Errorcode {   SC3_MPI_SUCCESS = 0 ,   SC3_MPI_ERR_ARG = 14000 ,   SC3_MPI_ERR_COUNT ,   SC3_MPI_ERR_UNKNOWN ,   SC3_MPI_ERR_OTHER ,   SC3_MPI_ERR_NO_MEM ,   SC3_MPI_ERR_FILE ,   SC3_MPI_ERR_NOT_SAME ,   SC3_MPI_ERR_AMODE ,   SC3_MPI_ERR_UNSUPPORTED_DATAREP ,   SC3_MPI_ERR_UNSUPPORTED_OPERATION ,   SC3_MPI_ERR_NO_SUCH_FILE ,   SC3_MPI_ERR_FILE_EXISTS ,   SC3_MPI_ERR_BAD_FILE ,   SC3_MPI_ERR_ACCESS ,   SC3_MPI_ERR_NO_SPACE ,   SC3_MPI_ERR_QUOTA ,   SC3_MPI_ERR_READ_ONLY ,   SC3_MPI_ERR_FILE_IN_USE ,   SC3_MPI_ERR_DUP_DATAREP ,   SC3_MPI_ERR_CONVERSION ,   SC3_MPI_ERR_IO ,   SC3_MPI_ERR_LASTCODE }
	We wrap some MPI error codes and the I/O error classes. More...
enum	sc3_MPI_Enum { SC3_MPI_UNDEFINED = 0x11 }
	We need several parameters to MPI functions. More...
enum	sc3_MPI_Comm_type { SC3_MPI_COMM_TYPE_SHARED = 0x12 }
	We wrap MPI 3 shared memory communicators. More...
enum	sc3_MPI_Win_mode {   SC3_MPI_LOCK_SHARED = 0x13 ,   SC3_MPI_LOCK_EXCLUSIVE = 0x14 ,   SC3_MPI_MODE_NOCHECK = 0x15 }
	Wrap MPI 3 window lock modes. More...

Detailed Description

We provide MPI replacement data types for configuring without MPI.

Included from both sc_mpi.h and the future sc3_mpi.h.

This header file provides definitions of MPI data types for the case that no MPI implementation is available or MPI is not configured.

Typedef Documentation

sc3_MPI_Comm_t

typedef struct sc3_MPI_Comm* sc3_MPI_Comm_t

Wrapped MPI communicator.

Without –enable-mpi, it reports size 1 and rank 0.

sc3_MPI_Comm_type_t

typedef enum sc3_MPI_Comm_type sc3_MPI_Comm_type_t

We wrap MPI 3 shared memory communicators.

Without –enable-mpi, they have size 1 and rank 0.

sc3_MPI_Info_t

typedef struct sc3_MPI_Info* sc3_MPI_Info_t

Wrapped MPI info object.

Without –enable-mpi, the set and get methods do nothing.

sc3_MPI_Win_t

typedef struct sc3_MPI_Win* sc3_MPI_Win_t

We wrap the MPI 3 window object.

With MPI 3 windows available, the functionality is unchanged. Without MPI 3 available, it is primitive but allows basic use.

When created with a communicator size of one, or when configure does not define SC_ENABLE_MPIWINSHARED, we use the wrapper and do not go through MPI. When shared windows are not supported and the communicator has size > 1, the wrapper cannot query or lock and unlock the window of remote ranks. Any such attempt will result in a fatal error returned.

Enumeration Type Documentation

sc3_MPI_Comm_type

enum sc3_MPI_Comm_type

We wrap MPI 3 shared memory communicators.

Without –enable-mpi, they have size 1 and rank 0.

Enumerator
SC3_MPI_COMM_TYPE_SHARED	MPI 3 shared window communicator.

sc3_MPI_Datatype

enum sc3_MPI_Datatype

We wrap the MPI datatypes we use.

Enumerator
SC3_MPI_DATATYPE_NULL	The invalid data type.
SC3_MPI_BYTE	Same as in original MPI. 1 byte. It is preferred over MPI_CHAR since the latter may amount to multiple bytes for wide chars.
SC3_MPI_INT	Same as in original MPI. System int type.
SC3_MPI_2INT	Same as in original MPI. Two system ints.
SC3_MPI_UNSIGNED	Same as in original MPI. System unsigned.
SC3_MPI_LONG	Same as in original MPI. System long type.
SC3_MPI_LONG_LONG	Same as in original MPI. System long long.
SC3_MPI_FLOAT	Same as in original MPI.
SC3_MPI_DOUBLE	Same as in original MPI.
SC3_MPI_DOUBLE_INT	Same as in original MPI. Double and int.

sc3_MPI_Enum

enum sc3_MPI_Enum

We need several parameters to MPI functions.

Enumerator
SC3_MPI_UNDEFINED	An input parameter with undefined value.

sc3_MPI_Errorcode

enum sc3_MPI_Errorcode

We wrap some MPI error codes and the I/O error classes.

Enumerator
SC3_MPI_SUCCESS	An MPI function has exited successfully.
SC3_MPI_ERR_ARG	An MPI function encountered invalid arguments.
SC3_MPI_ERR_COUNT	An MPI function encountered an invalid count argument.
SC3_MPI_ERR_UNKNOWN	An MPI function has produced an unknown error.
SC3_MPI_ERR_OTHER	An MPI function has produced some known error.
SC3_MPI_ERR_NO_MEM	An MPI function ran out of memory.

sc3_MPI_Op

enum sc3_MPI_Op

We wrap the MPI operation types we use.

Enumerator
SC3_MPI_OP_NULL	The invalid operation.
SC3_MPI_MIN	The usual minimum reduction operation.
SC3_MPI_MAX	The usual maximum reduction operation.
SC3_MPI_MINLOC	Find minimum value and its rank.
SC3_MPI_MAXLOC	Find maximum value and its rank.
SC3_MPI_LOR	Logical OR.
SC3_MPI_LAND	Logical AND.
SC3_MPI_LXOR	Logical XOR.
SC3_MPI_BOR	Bitwise OR.
SC3_MPI_BAND	Bitwise AND.
SC3_MPI_BXOR	Bitwise XOR.
SC3_MPI_REPLACE	The MPI replace operation.
SC3_MPI_SUM	The usual sum reduction operation.
SC3_MPI_PROD	The usual product reduction operation.

sc3_MPI_Win_mode

enum sc3_MPI_Win_mode

Wrap MPI 3 window lock modes.

Enumerator
SC3_MPI_LOCK_SHARED	Shared (multiple readers) lock.
SC3_MPI_LOCK_EXCLUSIVE	Exclusive (usually reader) lock.
SC3_MPI_MODE_NOCHECK	Option to MPI_Win_lock.
